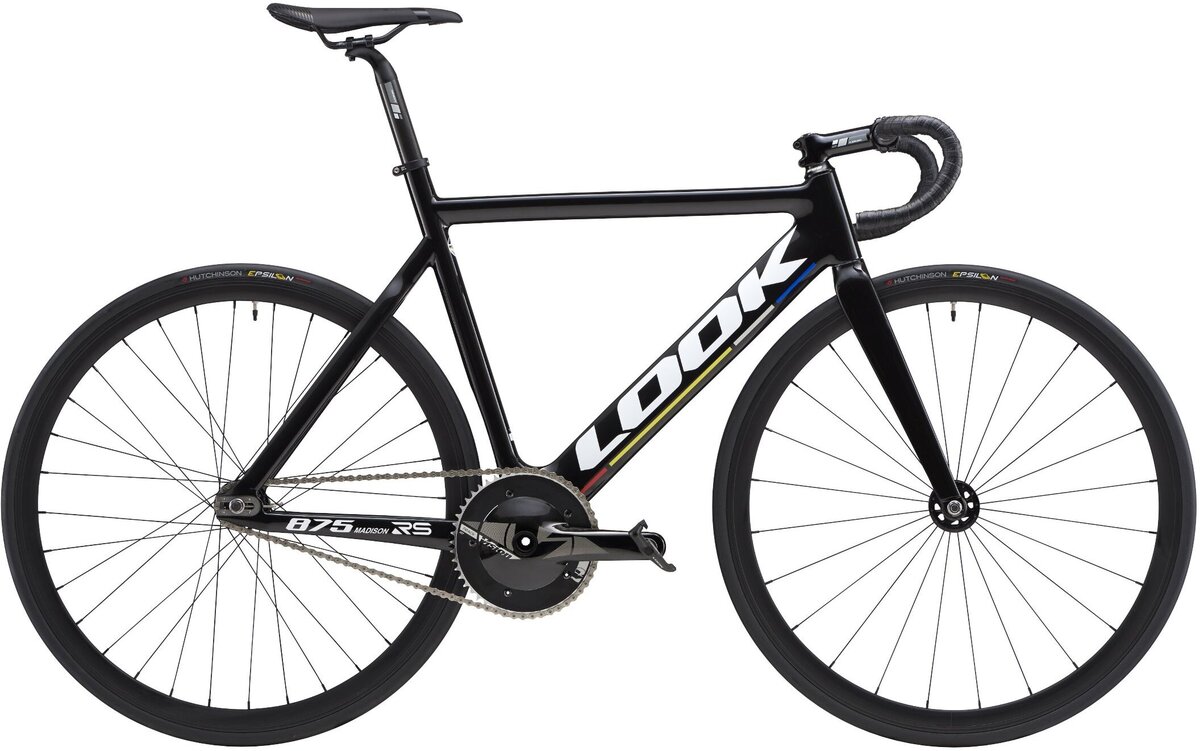

LOOK 875 RS Madison Track - 2021
Details
The Madison event is the ultimate symbol of track cycling. With its high-performance carbon composition, this 875 MADISON RS is an ode to the discipline. 20% high modulus carbon fibers make it impressively stiff and reactive. There is a good reason why it is the machine of choice for Olympic and world champions. Weighing but a breath over 7kg, it features a full Made by LOOK component range, from the seatpost to the stem and handlebars. The TRACK Black wheelset completes the glossy black package, set off by a white LOOK logo and the famous Mondrian line.
The 875 MADISON RS frame was designed in collaboration with the French Cycling Federation as a highly efficient track machine. The frame and fork are made of different types of carbon, strategically combined to create an extremely stiff and lightweight unit. The race-oriented geometry ensures you are always optimally positioned for performance.
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| A. Reach | 360mm | 385mm | 410mm | 435mm | 460mm |
| B. Stack | 480mm | 495mm | 510mm | 525mm | 540mm |
| C. Standover | 745mm | 760mm | 774mm | 790mm | 805mm |
| D. Effective Top Tube | 502mm | 531.5mm | 561mm | 590.5mm | 620mm |
| E. Head Tube Angle | 73° | 73° | 73° | 73° | 73° |
| F. Head Tube Length | 95mm | 110.5mm | 126mm | 142mm | 157.5mm |
| G. Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| H. Seat Tube Length | 500mm | 525mm | 550mm | 570mm | 590mm |
| J. Bottom Bracket Drop | 50mm | 50mm | 50mm | 50mm | 50mm |
| K. Fork Rake/Offset | 43mm | 43mm | 43mm | 43mm | 43mm |
| L. Trail | 59mm | 59mm | 59mm | 59mm | 59mm |
| N. Front to Center | 539mm | 568mm | 598mm | 627mm | 657mm |
| O. Chainstay Length | 380mm | 380mm | 380mm | 380mm | 380mm |
| Fork Length | 368mm | 368mm | 368mm | 368mm | 368mm |
| Cyclist's height | |
|---|---|
| X-Small | < 65" |
| Small | 65 – 68" |
| Medium | 67 – 71" |
| Large | 70 – 74" |
| X-Large | > 73" |
Specs
| Frame | UD Carbon-Finish High Modulus Carbon Frame |
|---|---|
| Fork | High Modulus Carbon Fork |
| Wheels | Track Black Reversible |
| Tires | Hutchinson Epsilon Fold 700c x 23 |
| Crankset | Vision 1x 50T, 170mm |
| Cassette/Freewheel | 15T / 16T (Reversible Wheel) |
| Chain | KMC K710, 1/2" X 1/8" |
| Handlebars | LOOK Alloy LS2 Compact |
| Stem | LOOK Alloy LS2 +/- 7° |
| Seatpost | LOOK LS2 Carbon 31.6mm x 350mm |
| Saddle | San Marco Monza |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Proteam Black Glossy / X-Small | 03611720188151 | 24394 |
| Proteam Black Glossy / Small | 03611720188168 | 24395 |
| Proteam Black Glossy / Medium | 03611720188175 | 24396 |
| Proteam Black Glossy / Large | 03611720188182 | 24397 |
| Proteam Black Glossy / X-Large | 03611720188199 | 24398 |
