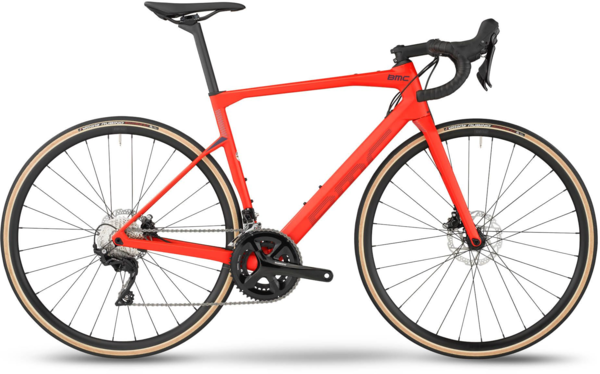

BMC Roadmachine SEVEN

BMC Roadmachine SEVEN
  • Color: Neon Red/Petrol Blue
$3,199.00
Color:
Neon Red/Petrol Blue
Please select options
Sorry, this item is currently not available. Please contact us to check availability.

Details

The Roadmachine's frame and fork are constructed in our Premium Carbon with all the benefits of the built-in TCC Endurance technology. Internal cable routing gives a clean aesthetic to this road bike, whilst the Premium Carbon D-Shape seatpost ensures next-level compliance in the saddle. The gateway to the Carbon Roadmachines, this SEVEN model has an aluminium bar and stem, a Shimano 105 11-speed groupset with the RS510 compact crankset, and PRD23 wheels with 28mm Vittoria tires.

Geometry Chart:
Size475154565861
Rider Height CM <166 166-174 172-180 178-186 184-192 >190
Stack MM 516 541 562 586 610 644
Reach MM (reach) 374 382 386 390 394 398
Seat Tube MM (st) 420 457 500 522 539 573
Top Tube MM (tt) 522 532 546 556 568 583
Head Tube MM (ht) 112 139 156 181 206 242
Seat Tube Angle (sa) 74.2 74.2 74.2 74.2 74.2 74.2
Head Angle (ha) 71.2 71.2 72 72 72 72
Rear Center MM (rc) 410 410 410 410 410 410
Front Center MM (fc) 583 599 597 609 621 635
Wheelbase MM (wb) 982 999 997 1008 1020 1035
BB Drop MM (drop) 71 71 71 71 71 71
Fork Length MM (fl) 375 375 375 375 375 375
Fork Rake MM (fr) 50 50 45 45 45 45
Trail MM (trail) 63 63 63 63 63 63
Crank Length MM 170 170 172.5 172.5 175 175
Stem Length MM 90 90 100 110 110 120
Stem Angle ±8 ±8 ±8 ±8 ±8 ±8
Bar Width MM 400 420 420 420 420 440
Bar Drop MM 125 125 125 125 125 125
Bar Reach MM 70 70 70 70 70 70
Post Offset MM 15 15 15 15 15 15

Specs

Frame Roadmachine Premium Carbon with Tuned Compliance, Concept Endurance, Internal Cable Routing, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle
Fork Roadmachine Premium Carbon with Tuned Compliance, Concept Endurance, Internal Cable Routing, Flat Mount Disc, 12x100mm Thru-Axle
Rims PRD23 - 23mm
Hubs Shimano FH-RS470 (F)/ HB-RS470 (R) - Thru Axle
Tires VITTORIA RUBINO - 28mm
Chainrings SHIMANO FC-RS510 50-34T
Shifters SHIMANO 105
Rear Derailleur SHIMANO 105
Cassette/Freewheel SHIMANO 105 11-32T
Chain SHIMANO 105
Brakes SHIMANO 105 - RT54 Rotors (160/160)
Handlebars BMC RAB 03 - Ergo Top Shape - Compact Bend
Stem BMC RSM01
Seatpost Roadmachine Premium Carbon D-Shaped Seatpost, 15mm Offset
Saddle Velo
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Neon Red/Petrol Blue / 47cm 07630027885095 30002455
Neon Red/Petrol Blue / 51cm 07630027885088 30002456
Neon Red/Petrol Blue / 54cm 07630027885071 30002457
Neon Red/Petrol Blue / 56cm 07630027885064 30002458
Neon Red/Petrol Blue / 58cm 07630027885057 30002459
Neon Red/Petrol Blue / 61cm 07630027885040 30002460
